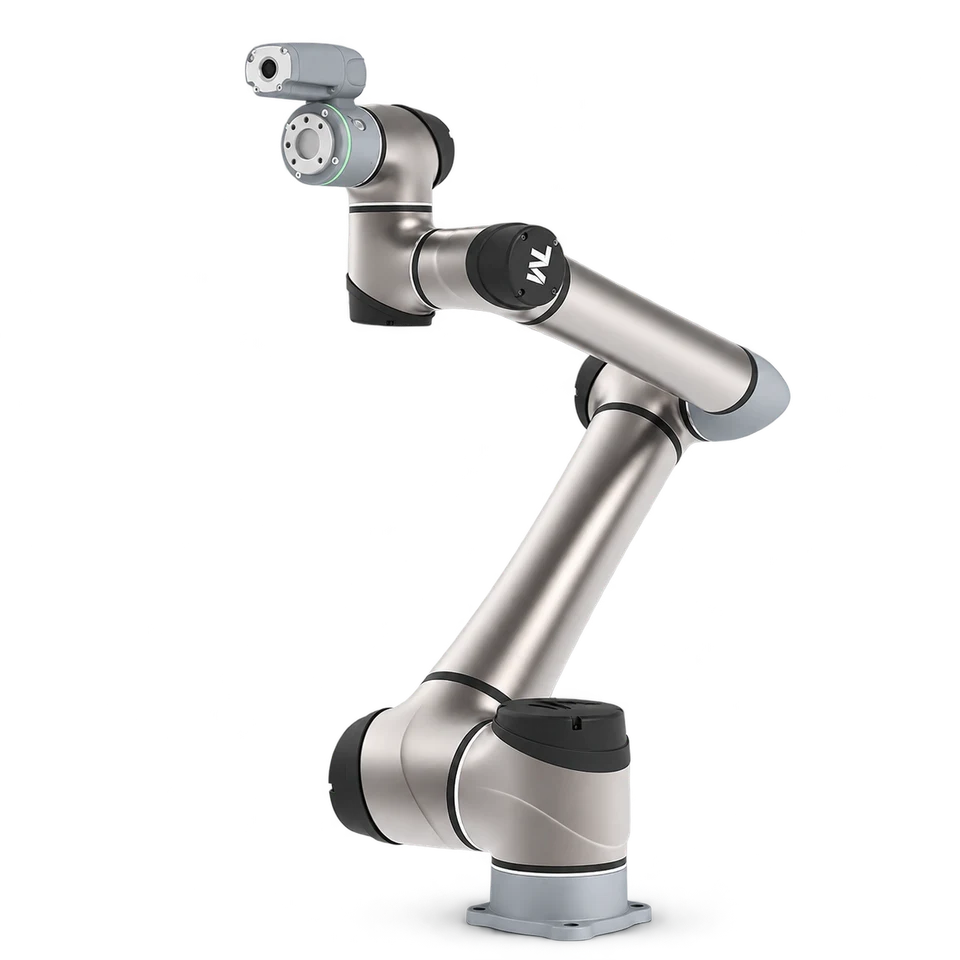

Techman RobotTM12S
S-series collaborative arm with integrated vision, a 12 kg rated payload and TMflow 2 programming.
- Form
- arm
- Purpose
- Vision-guided automation
Specifications
Manufacturer-reported hardware and purchase details. Configuration differences stay with each value.
| Attribute | Reported value | Source |
|---|---|---|
| Control | ||
| Safety functions | 31 manufacturer-listed functions; application assessment still required | 2026-10-26 |
| Development | ||
| Customization | TMcraft C# / WPF development | 2026-10-26 |
| Programming | TMflow 2 graphical workflow with script nodes | 2026-10-26 |
| Environment | ||
| Protection | IP65 | 2026-10-26 |
| Interaction | ||
| Teach control | Robot Stick with three-position enabling switch | 2026-10-26 |
| Manipulation | ||
| Joint 6 speed | Up to 450°/s | 2026-10-26 |
| Rated payload | 12 kg | 2026-10-26 |
| Reach | 1300 mm | 2026-10-26 |
| Repeatability | ±0.03 mm | 2026-10-26 |
| Physical | ||
| Arm mass | 33 kg | 2026-10-26 |
| Purchase | ||
| Availability and region | Listed by the manufacturer with a sales or ordering route; confirm configuration, regional delivery and lead time before purchase. | 2026-10-26 |
| Pricing basis | No configured USD price confirmed in the reviewed source; request current package pricing. | 2026-10-26 |
| Sensors | ||
| Vision | Integrated vision system | 2026-10-26 |
Evidence map
1 of 25 measurements have records. Each column shows a kind of evidence, not a performance rating. Select a count to read the records.
| Measurement | Manufacturer reported | Demonstrated | Community tested | Independently benchmarked |
|---|---|---|---|---|
| Autonomy | ||||
| Autonomous completion | No records | No records | No records | No records |
| Failure recovery | No records | No records | No records | No records |
| Intervention burden | No records | No records | No records | No records |
| Intervention frequency | No records | No records | No records | No records |
| Novelty degradation | No records | No records | No records | No records |
| Endurance & reliability | ||||
| Charging time | No records | No records | No records | No records |
| Energy per task | No records | No records | No records | No records |
| Mission failure rate | No records | No records | No records | No records |
| Working runtime | No records | No records | No records | No records |
| Interaction | ||||
| Human setup time | No records | No records | No records | No records |
| Instruction following | No records | No records | No records | No records |
| Response latency | No records | No records | No records | No records |
| Manipulation | ||||
| Door opening | No records | No records | No records | No records |
| Fine manipulation | No records | No records | No records | No records |
| Multistep execution | No records | No records | No records | No records |
| Object retrieval | No records | No records | No records | No records |
| Unfamiliar-object grasping | No records | No records | No records | No records |
| Mobility | ||||
| Load carrying | 1 | No records | No records | No records |
| Obstacle avoidance | No records | No records | No records | No records |
| Room navigation | No records | No records | No records | No records |
| Stair climbing | No records | No records | No records | No records |
| Travel speed | No records | No records | No records | No records |
| Ownership | ||||
| Cost per successful task | No records | No records | No records | No records |
| Operating cost | No records | No records | No records | No records |
| Purchase cost | No records | No records | No records | No records |
— No records: not assessed, not zero performance. Some measurements may not apply to this form factor. Counts indicate documentation, not quality or independent verification.
Evidence records
Claims stay attributed. Read each record for hardware, conditions, limitations and disclosures.
1 of 1 records
| Record / measurement | Attribution / context | Result | Record date |
|---|---|---|---|
Load carrying Load carrying · manufacturer claimTechman Robot specifies a 12 kg rated payload for TM12S; this is a manufacturer specification, not an independent Omblet load test. | Manufacturer reported Omblet editorial Environment unspecified | No measured value | 2026-10-26 |
Safety
No model-wide certification is asserted by Omblet. Read the safety disclosure on each evidence record and the manufacturer documentation.
Cybersecurity
No model-wide certification is asserted by Omblet. Read the cybersecurity disclosure on each evidence record and the manufacturer documentation.
In the hands of owners
Public robot profiles, configurations and experience from the people using this model.
