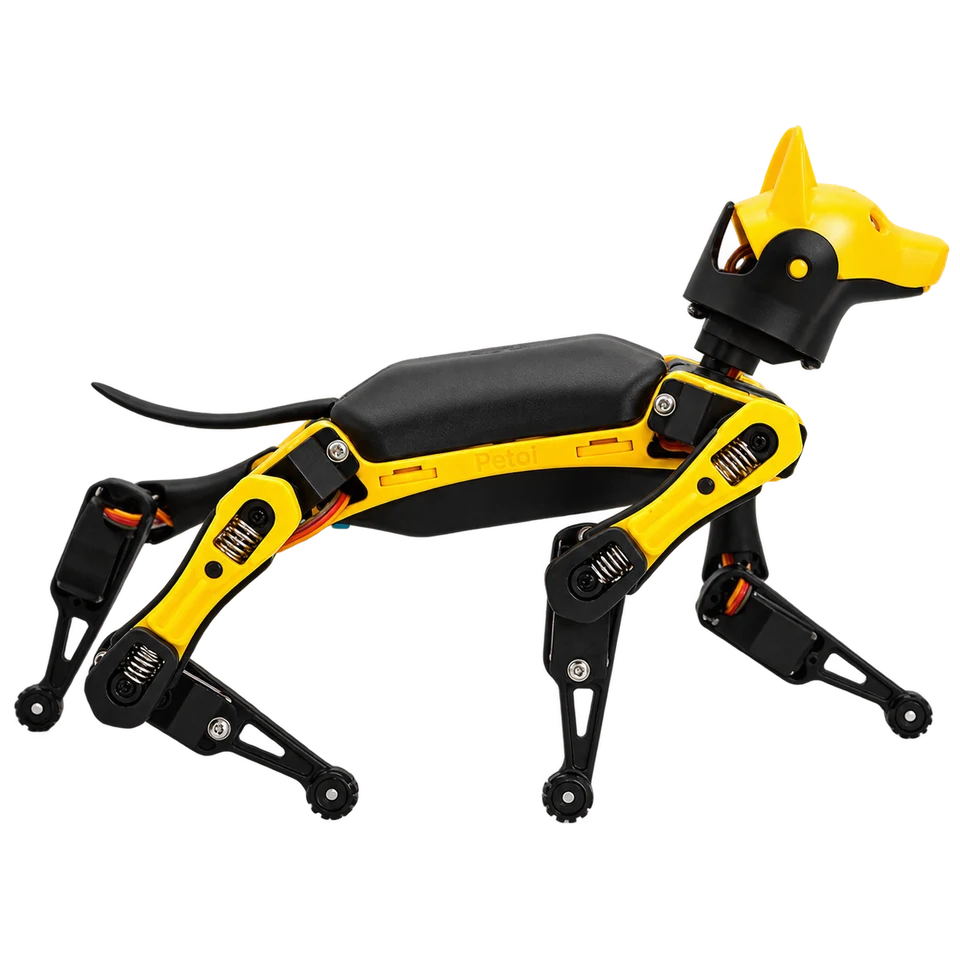

PetoiBittle X V2 (Lite servos)
Programmable dog-shaped quadruped running OpenCat. This record covers the Lite-servo configuration; optional computers and accessories are separate.
- Form
- quadruped
- Purpose
- Open-source robotics education
Specifications
Manufacturer-reported hardware and purchase details. Configuration differences stay with each value.
| Attribute | Reported value | Source |
|---|---|---|
| Configuration | ||
| Actuated joints | 9 actuated joints: one head and two per leg | 2026-10-26 |
| Body construction | ESP32-based BiBoard controller | 2026-10-26 |
| Selected package | Construction kit; Lite servos; optional arm excluded | 2026-10-26 |
| Development | ||
| Computer expansion | Optional Raspberry Pi or Jetson Nano integration; external computer not included | 2026-10-26 |
| Educational audience | Ages 10+; school and robotics curricula offered | 2026-10-26 |
| Programming | Block coding, Python and Arduino C++ | 2026-10-26 |
| Robot framework | Open-source OpenCat | 2026-10-26 |
| Interaction | ||
| Control methods | Mobile app and voice control | 2026-10-26 |
| Voice commands | More than 35 supplied voice commands; up to 10 custom commands | 2026-10-26 |
| Power | ||
| Playtime | Advertised one hour; movement and workload affect duration | 2026-10-26 |
| Purchase | ||
| Availability and region | Selected Lite-servo variant offered through Petoi store; international delivery and shipping charges vary. | 2026-10-26 |
| Pricing basis | US$319 for the Bittle X V2 construction kit with Lite servos; preassembled Lite version US$339. Shipping and applicable customs depend on destination. | 2026-10-26 |
Evidence map
1 of 25 measurements have records. Each column shows a kind of evidence, not a performance rating. Select a count to read the records.
| Measurement | Manufacturer reported | Demonstrated | Community tested | Independently benchmarked |
|---|---|---|---|---|
| Autonomy | ||||
| Autonomous completion | No records | No records | No records | No records |
| Failure recovery | No records | No records | No records | No records |
| Intervention burden | No records | No records | No records | No records |
| Intervention frequency | No records | No records | No records | No records |
| Novelty degradation | No records | No records | No records | No records |
| Endurance & reliability | ||||
| Charging time | No records | No records | No records | No records |
| Energy per task | No records | No records | No records | No records |
| Mission failure rate | No records | No records | No records | No records |
| Working runtime | No records | No records | No records | No records |
| Interaction | ||||
| Human setup time | No records | No records | No records | No records |
| Instruction following | 1 | No records | No records | No records |
| Response latency | No records | No records | No records | No records |
| Manipulation | ||||
| Door opening | No records | No records | No records | No records |
| Fine manipulation | No records | No records | No records | No records |
| Multistep execution | No records | No records | No records | No records |
| Object retrieval | No records | No records | No records | No records |
| Unfamiliar-object grasping | No records | No records | No records | No records |
| Mobility | ||||
| Load carrying | No records | No records | No records | No records |
| Obstacle avoidance | No records | No records | No records | No records |
| Room navigation | No records | No records | No records | No records |
| Stair climbing | No records | No records | No records | No records |
| Travel speed | No records | No records | No records | No records |
| Ownership | ||||
| Cost per successful task | No records | No records | No records | No records |
| Operating cost | No records | No records | No records | No records |
| Purchase cost | No records | No records | No records | No records |
— No records: not assessed, not zero performance. Some measurements may not apply to this form factor. Counts indicate documentation, not quality or independent verification.
Evidence records
Claims stay attributed. Read each record for hardware, conditions, limitations and disclosures.
1 of 1 records
| Record / measurement | Attribution / context | Result | Record date |
|---|---|---|---|
Instruction following Instruction following · manufacturer claimPetoi advertises more than 35 voice-triggered movements and support for custom commands; this is not an independently measured recognition score. | Manufacturer reported Omblet editorial Environment unspecified | No measured value | 2026-10-26 |
