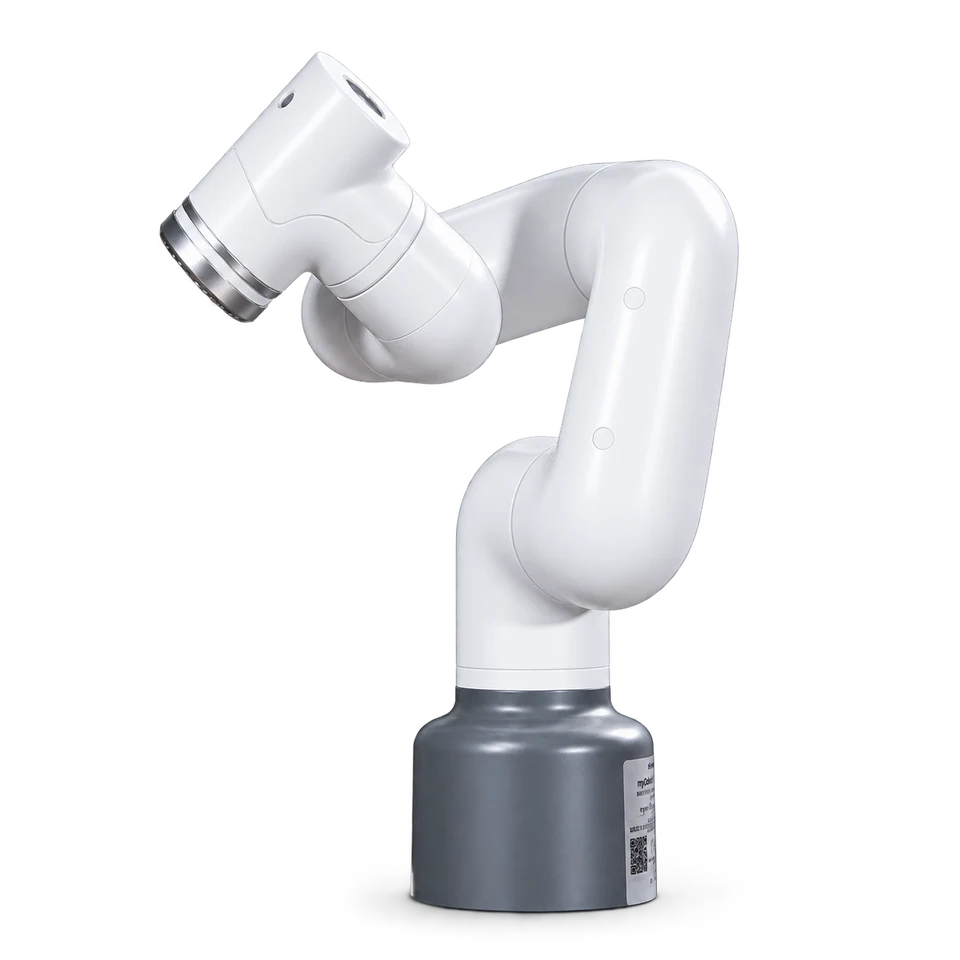

Elephant RoboticsmyCobot 320 M5
Six-axis M5Stack development arm with a 1 kg payload and serial, Modbus and TCP/IP programming interfaces.
- Form
- arm
- Purpose
- Desktop arm development
Specifications
Manufacturer-reported hardware and purchase details. Configuration differences stay with each value.
| Attribute | Reported value | Source |
|---|---|---|
| Compute | ||
| Controller | ESP32; dual-core 240 MHz | 2026-10-26 |
| Memory | 520 KB SRAM; 4 MB flash | 2026-10-26 |
| Configuration | ||
| Axes | 6 | 2026-10-26 |
| Connectivity | ||
| Control protocols | Serial, Modbus and TCP/IP | 2026-10-26 |
| Interfaces | One USB-C; six inputs and six outputs | 2026-10-26 |
| Development | ||
| Languages | Python, C++, C# and JavaScript | 2026-10-26 |
| Software | ROS 1, myBlockly, myStudio, UiFlow and Arduino | 2026-10-26 |
| Manipulation | ||
| Listed positioning accuracy | ±0.5 mm; terminology follows product table | 2026-10-26 |
| Maximum joint speed | 160°/s | 2026-10-26 |
| Payload | 1,000 g | 2026-10-26 |
| Working radius | 350 mm | 2026-10-26 |
| Physical | ||
| Mass | 3,360 g | 2026-10-26 |
| Purchase | ||
| Availability and region | Official sales enquiry route; confirm regional supply, tooling, installation and lead time. | 2026-10-26 |
| Pricing basis | Manufacturer sales quote; end effector, integration and regional terms are configuration-dependent. No public configured USD price verified. | 2026-10-26 |
Evidence map
1 of 25 measurements have records. Each column shows a kind of evidence, not a performance rating. Select a count to read the records.
| Measurement | Manufacturer reported | Demonstrated | Community tested | Independently benchmarked |
|---|---|---|---|---|
| Autonomy | ||||
| Autonomous completion | No records | No records | No records | No records |
| Failure recovery | No records | No records | No records | No records |
| Intervention burden | No records | No records | No records | No records |
| Intervention frequency | No records | No records | No records | No records |
| Novelty degradation | No records | No records | No records | No records |
| Endurance & reliability | ||||
| Charging time | No records | No records | No records | No records |
| Energy per task | No records | No records | No records | No records |
| Mission failure rate | No records | No records | No records | No records |
| Working runtime | No records | No records | No records | No records |
| Interaction | ||||
| Human setup time | No records | No records | No records | No records |
| Instruction following | No records | No records | No records | No records |
| Response latency | No records | No records | No records | No records |
| Manipulation | ||||
| Door opening | No records | No records | No records | No records |
| Fine manipulation | No records | No records | No records | No records |
| Multistep execution | No records | No records | No records | No records |
| Object retrieval | No records | No records | No records | No records |
| Unfamiliar-object grasping | No records | No records | No records | No records |
| Mobility | ||||
| Load carrying | 1 | No records | No records | No records |
| Obstacle avoidance | No records | No records | No records | No records |
| Room navigation | No records | No records | No records | No records |
| Stair climbing | No records | No records | No records | No records |
| Travel speed | No records | No records | No records | No records |
| Ownership | ||||
| Cost per successful task | No records | No records | No records | No records |
| Operating cost | No records | No records | No records | No records |
| Purchase cost | No records | No records | No records | No records |
— No records: not assessed, not zero performance. Some measurements may not apply to this form factor. Counts indicate documentation, not quality or independent verification.
Evidence records
Claims stay attributed. Read each record for hardware, conditions, limitations and disclosures.
1 of 1 records
| Record / measurement | Attribution / context | Result | Record date |
|---|---|---|---|
Load carrying Load carrying · manufacturer claimElephant Robotics lists a 1 kg payload for myCobot 320 M5; end-effector load must be considered. | Manufacturer reported Omblet editorial Environment unspecified | No measured value | 2026-10-26 |
