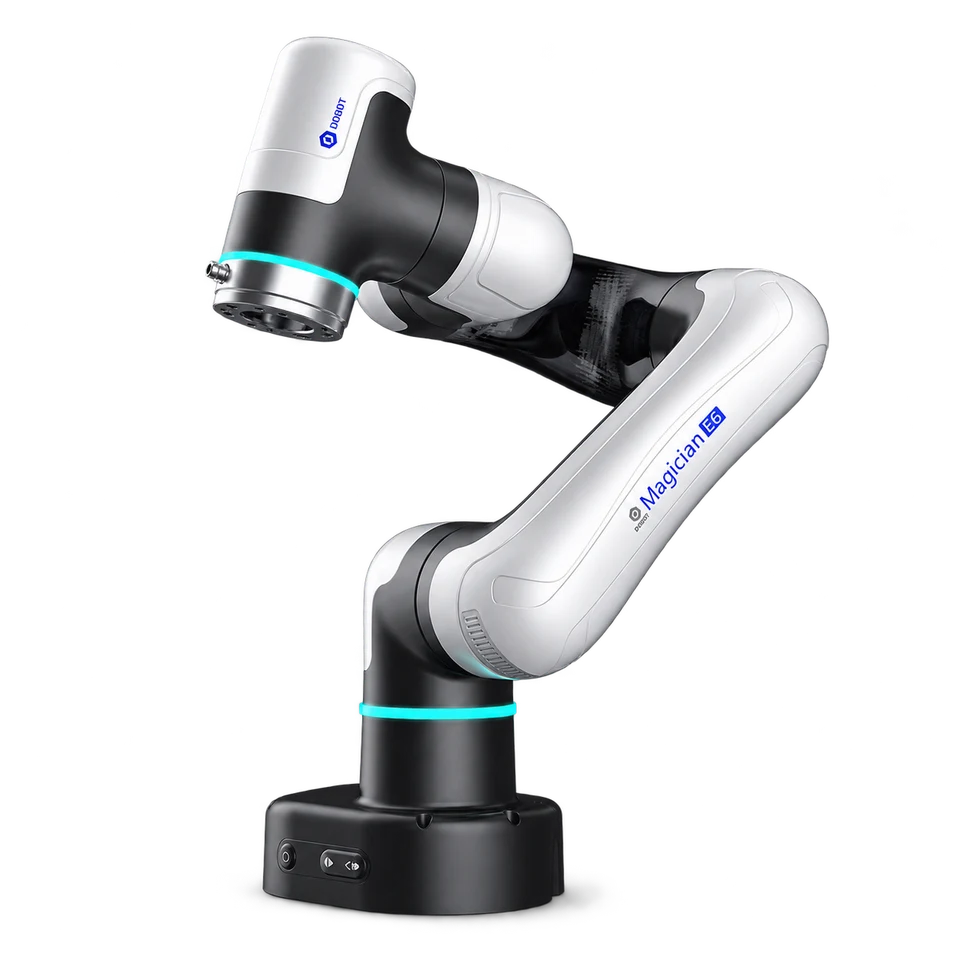

DOBOTMagician E6
Desktop teaching arm with Ethernet control and accessible digital I/O, designed for robotics education and small manipulation demonstrations.
- Form
- arm
- Purpose
- Six-axis desktop education
Specifications
Manufacturer-reported hardware and purchase details. Configuration differences stay with each value.
| Attribute | Reported value | Source |
|---|---|---|
| Configuration | ||
| Axes | 6 | 2026-10-26 |
| Installation | Desktop | 2026-10-26 |
| Connectivity | ||
| Ethernet | Two ports; TCP/IP and Modbus TCP | 2026-10-26 |
| Development | ||
| Software | DobotStudio Pro | 2026-10-26 |
| Environment | ||
| Temperature | 0–40°C | 2026-10-26 |
| Manipulation | ||
| Maximum joint speed | 120°/s | 2026-10-26 |
| Maximum TCP speed | 0.5 m/s | 2026-10-26 |
| Payload | 750 g | 2026-10-26 |
| Repeatability | ±0.1 mm | 2026-10-26 |
| Working radius | 450 mm | 2026-10-26 |
| Physical | ||
| Mass | ≤7.2 kg | 2026-10-26 |
| Power | ||
| Consumption | 130 W | 2026-10-26 |
| Rated supply | 48 V DC, 5 A | 2026-10-26 |
| Protection | ||
| Ingress rating | IP20 | 2026-10-26 |
| Purchase | ||
| Availability and region | Official sales enquiry route; confirm regional supply, tooling, installation and lead time. | 2026-10-26 |
| Pricing basis | Manufacturer sales quote; end effector, integration and regional terms are configuration-dependent. No public configured USD price verified. | 2026-10-26 |
Evidence map
1 of 25 measurements have records. Each column shows a kind of evidence, not a performance rating. Select a count to read the records.
| Measurement | Manufacturer reported | Demonstrated | Community tested | Independently benchmarked |
|---|---|---|---|---|
| Autonomy | ||||
| Autonomous completion | No records | No records | No records | No records |
| Failure recovery | No records | No records | No records | No records |
| Intervention burden | No records | No records | No records | No records |
| Intervention frequency | No records | No records | No records | No records |
| Novelty degradation | No records | No records | No records | No records |
| Endurance & reliability | ||||
| Charging time | No records | No records | No records | No records |
| Energy per task | No records | No records | No records | No records |
| Mission failure rate | No records | No records | No records | No records |
| Working runtime | No records | No records | No records | No records |
| Interaction | ||||
| Human setup time | No records | No records | No records | No records |
| Instruction following | No records | No records | No records | No records |
| Response latency | No records | No records | No records | No records |
| Manipulation | ||||
| Door opening | No records | No records | No records | No records |
| Fine manipulation | 1 | No records | No records | No records |
| Multistep execution | No records | No records | No records | No records |
| Object retrieval | No records | No records | No records | No records |
| Unfamiliar-object grasping | No records | No records | No records | No records |
| Mobility | ||||
| Load carrying | No records | No records | No records | No records |
| Obstacle avoidance | No records | No records | No records | No records |
| Room navigation | No records | No records | No records | No records |
| Stair climbing | No records | No records | No records | No records |
| Travel speed | No records | No records | No records | No records |
| Ownership | ||||
| Cost per successful task | No records | No records | No records | No records |
| Operating cost | No records | No records | No records | No records |
| Purchase cost | No records | No records | No records | No records |
— No records: not assessed, not zero performance. Some measurements may not apply to this form factor. Counts indicate documentation, not quality or independent verification.
Evidence records
Claims stay attributed. Read each record for hardware, conditions, limitations and disclosures.
1 of 1 records
| Record / measurement | Attribution / context | Result | Record date |
|---|---|---|---|
Fine manipulation Fine manipulation · manufacturer claimDOBOT reports ±0.1 mm repeatability for Magician E6; no independent manipulation result is recorded. | Manufacturer reported Omblet editorial Environment unspecified | No measured value | 2026-10-26 |
In the hands of owners
Public robot profiles, configurations and experience from the people using this model.
