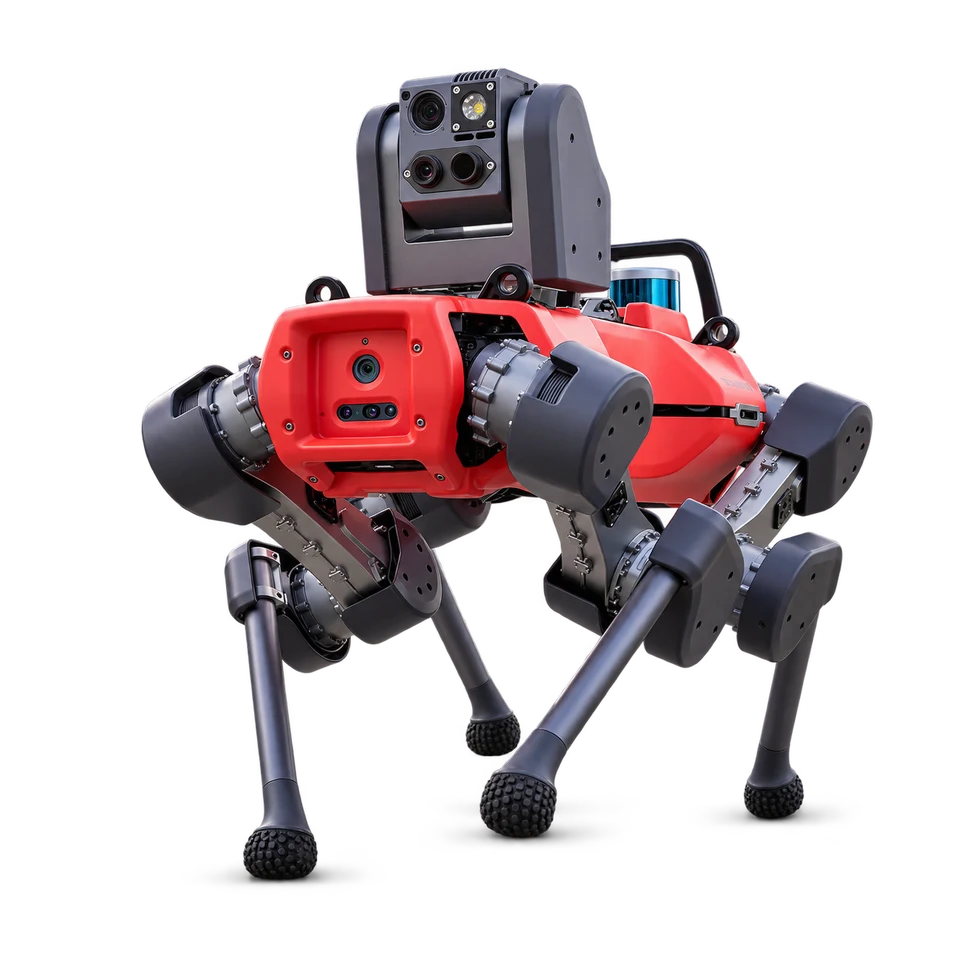

ANYboticsANYmal D (Inspection Payload)
Generation D quadruped with the standard visual, thermal and acoustic inspection payload. Regional deployment and additional sensing are configured through sales.
- Form
- quadruped
- Purpose
- Industrial inspection
Specifications
Manufacturer-reported hardware and purchase details. Configuration differences stay with each value.
| Attribute | Reported value | Source |
|---|---|---|
| Compute | ||
| Processors | Two 8th-generation six-core Intel Core i7 CPUs | 2026-10-26 |
| Environment | ||
| Ingress protection | IP67 | 2026-10-26 |
| Operating temperature | Specified 0–40°C; typical operation listed as −10–50°C | 2026-10-26 |
| Mobility | ||
| Walking speed | Up to 1.3 m/s; recommended 0.75 m/s; terrain can reduce speed | 2026-10-26 |
| Physical | ||
| Lying height | 470 mm | 2026-10-26 |
| Mass | 55.7 kg with inspection payload; 50 kg without | 2026-10-26 |
| Walking dimensions | 930 × 530 × 890 mm (L × W × H), default walking posture | 2026-10-26 |
| Power | ||
| Battery | Swappable 932.4 Wh Li-ion | 2026-10-26 |
| Charging time | 3 hours full; 100 minutes to 70% | 2026-10-26 |
| Inspection range | Up to 2 km for a typical inspection mission; workload dependent | 2026-10-26 |
| Runtime | 90–120 minutes per charge, dependent on payload and inspection workload | 2026-10-26 |
| Purchase | ||
| Availability and region | Official sales-enquiry route; confirm Generation D configuration and service coverage for the deployment region. | 2026-10-26 |
| Pricing basis | Quote required for robot, inspection configuration and deployment; no public configured USD price. | 2026-10-26 |
| Sensors | ||
| Inspection camera | 20× optical zoom; up to 3840 × 2160 at 30 fps | 2026-10-26 |
| Navigation sensors | 360° lidar, six depth cameras and two teleoperation cameras | 2026-10-26 |
| Thermal measurement range | −40 to +550°C; sensor measurement range, not operating temperature | 2026-10-26 |
Evidence map
2 of 25 measurements have records. Each column shows a kind of evidence, not a performance rating. Select a count to read the records.
| Measurement | Manufacturer reported | Demonstrated | Community tested | Independently benchmarked |
|---|---|---|---|---|
| Autonomy | ||||
| Autonomous completion | No records | No records | No records | No records |
| Failure recovery | No records | No records | No records | No records |
| Intervention burden | No records | No records | No records | No records |
| Intervention frequency | No records | No records | No records | No records |
| Novelty degradation | No records | No records | No records | No records |
| Endurance & reliability | ||||
| Charging time | No records | No records | No records | No records |
| Energy per task | No records | No records | No records | No records |
| Mission failure rate | No records | No records | No records | No records |
| Working runtime | No records | No records | No records | No records |
| Interaction | ||||
| Human setup time | No records | No records | No records | No records |
| Instruction following | No records | No records | No records | No records |
| Response latency | No records | No records | No records | No records |
| Manipulation | ||||
| Door opening | No records | No records | No records | No records |
| Fine manipulation | No records | No records | No records | No records |
| Multistep execution | No records | No records | No records | No records |
| Object retrieval | No records | No records | No records | No records |
| Unfamiliar-object grasping | No records | No records | No records | No records |
| Mobility | ||||
| Load carrying | No records | No records | No records | No records |
| Obstacle avoidance | No records | No records | No records | No records |
| Room navigation | 1 | No records | No records | No records |
| Stair climbing | 1 | No records | No records | No records |
| Travel speed | No records | No records | No records | No records |
| Ownership | ||||
| Cost per successful task | No records | No records | No records | No records |
| Operating cost | No records | No records | No records | No records |
| Purchase cost | No records | No records | No records | No records |
— No records: not assessed, not zero performance. Some measurements may not apply to this form factor. Counts indicate documentation, not quality or independent verification.
Evidence records
Claims stay attributed. Read each record for hardware, conditions, limitations and disclosures.
2 of 2 records
| Record / measurement | Attribution / context | Result | Record date |
|---|---|---|---|
Room navigation Room navigation · manufacturer claimANYbotics advertises autonomous inspection missions and return to its charging dock. | Manufacturer reported Omblet editorial Environment unspecified | No measured value | 2026-10-26 |
Stair climbing Stair climbing · manufacturer claimANYbotics advertises stair traversal for Generation D within its documented geometry limits. | Manufacturer reported Omblet editorial Environment unspecified | No measured value | 2026-10-26 |
